How to Turn Your 64" Epson SureColor into an Automated Printing and Lamination Line (Top MEFU Solutions)

2026-10-15

Quick Summary

Direct Compatibility: Any 64-inch (1626mm) Epson printer—including the SureColor® R-Series (Resin) and S-Series (Eco-Solvent)—can be connected inline with a MEFU 1700 Series (67" / 1680mm) Roll Laminator to create an automated printer-laminator workflow.
Optimal Width Margin: Pairing a 67-inch MEFU laminator with a 64-inch Epson printer provides a 3-inch (54mm) safety margin, preventing adhesive bleed onto silicon rollers during long unattended runs.
Zero Stop-Marks: MEFU’s non-contact optical loop sensor bridge automatically synchronizes lamination speed (0–9 m/min) with the printer’s feed rate, cutting labor costs by up to 50%.
Top 3 Configurations: Print shops can choose between the MEFU MF1700-F1 PLUS (Heavy-Duty Pneumatic Line), the MEFU MF1700-C1 PRO with Slitters (Print-Laminate-Trim Station), or a Bespoke Custom Inline System backed by MEFU’s 18+ years of manufacturing expertise across 110+ countries.

If your print shop runs a 64-inch Epson printer—such as the SureColor® R-Series or S-Series—you already know how fast and vibrant your output is. However, in most commercial print rooms, production hits a bottleneck the moment the print job finishes. An operator has to unload a heavy 50kg media roll, haul it across the room, re-thread it into a standalone laminator, and deal with skewed edges or wasted leader film.

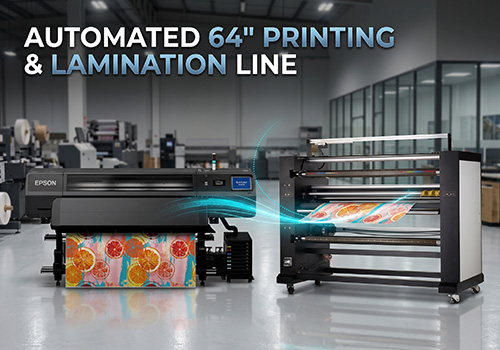

For over 18 years, MEFU has helped print businesses in more than 110 countries eliminate this exact finishing challenge. By connecting your 64-inch (1626mm) Epson setup directly to a MEFU 1700 Series (67" / 1680mm) Roll Laminator—or building a tailored finishing line around your unique shop floor—you can transform two separate tasks into a single, synchronized printing and lamination workflow.

Below is the complete technical guide to building an inline system, featuring our top standard setups and custom-engineered solutions.

Why Should You Pair a 64" Epson Printer with a 67" MEFU Roll Laminator?

To build a reliable inline printing and lamination system, your roll laminator must be wider than your printer’s media output and feature automated tension synchronization.

Pairing a 64-inch (1626mm) printer with a standard 64-inch laminator leaves zero room for mechanical tolerance—even a 2mm media drift can expose raw adhesive onto your rollers. MEFU’s MF1700 Series solves this with a generous 67-inch (1630mm–1680mm) working width, giving your 64-inch Epson media up to a 3-inch (54mm) safety margin.

Combined with a non-contact optical loop sensor bridge, the MEFU laminator automatically modulates its roller speed to match your printer's exact feed rate—delivering smooth, continuous print lamination without stop-marks, silvering, or tension wrinkles.

What Are the Best Epson × MEFU Inline Configurations for Commercial Print Shops?

Whether you need a plug-and-play heavy-duty bundle or a bespoke factory line built from the ground up, MEFU offers three proven configurations tailored to your ink technology and production goals:

The "Zero-Wait" Industrial Line (Best for Continuous Heavy-Duty Output)

Compatible Epson Models: Epson SureColor R5070 / R5070L (North America) & SC-R5000 / SC-R5000L (Europe / Global), plus high-speed S-Series (S40600 / S60600 / S80600 / S9170 / SC-S9100)

Matched MEFU Laminator: MEFU MF1700-F1 PLUS (67" Heavy-Duty Pneumatic Roll Laminator)

Complete the Line: MEFU Loop Bridge + MEFU XY CUTTER

How This Configuration Works:

High-speed printing—especially with Epson’s instant-dry UltraChrome® RS Resin ink or rapid GS3 eco-solvent ink—demands a laminator built for non-stop industrial endurance. High curing heat can cause vinyl and wall-covering media to expand slightly, while thick pigment layers require heat-assisted adhesive flow (40°C–60°C) to prevent silvering.

The MEFU MF1700-F1 PLUS utilizes industrial pneumatic air cylinders, heated 130mm high-density silicon rollers, and precision tension control to apply uniform nip pressure across the entire width. It flattens thermal media waves instantly and eliminates micro-bubbles, allowing 24/7 unattended printing and lamination for bespoke wallpapers, fleet graphics, and fast-turnaround signage.

The "Print-Laminate-Trim" All-in-One Station (Best for High-Volume Roll-to-Roll)

Compatible Epson Models: All 64" Epson SureColor R-Series & S-Series Models

Matched MEFU Laminator: MEFU MF1700-C1 PRO (with Inline Rotary Slitters)

Complementary Gear: MEFU Flatbed Applicator & Precision Cutting Systems

How This Configuration Works:

When upgrading your print laminat workflow, choosing a MEFU MF1700 model equipped with rear longitudinal slitters lets you automate three post-press steps in a single pass. As the laminated graphic exits the nip rollers, 2 to 4 precision rotary blades automatically trim away the unprinted white side borders. Your finished roll winds onto the take-up reel trimmed to exact width specifications—saving hours of manual trimming at the finishing table.

Bespoke Custom Inline Solutions (Tailored to Your Production Needs)

Compatible Printers: Single or Multiple Epson SureColor Printers (64" and beyond, including Resin, Eco-Solvent, UV, and Sublimation lines)

Custom MEFU Hardware: Tailored Roll Laminators, Custom Extended Drying Machine, Multi-Blade Slitting Modules, and Integrated Precision Cutting

Ideal For: Specialized substrates, space-constrained print rooms, and large-scale industrial automation

How Custom Engineering Works:

No two print factories operate the same way. Backed by over 18 years of R&D and manufacturing expertise, MEFU’s engineering team designs customized printer-laminator workflows built specifically around your daily output volume, media types, and floor layout:

Custom Bridge & Drying Modules: Running heavy-ink eco-solvent wraps? We customize bridge lengths, optical loop sensitivity, and auxiliary infrared or fan drying modules to match your exact ink outgassing requirements.

Width & Roller Customization: Configure standard 64" setups up to extra-wide format lines, dual-heated rollers (up to 120°C), or specialized pneumatic pressure zones for delicate films and textiles.

End-to-End Post-Press Integration: Combine inline printing and lamination with MEFU’s Flatbed Applicators, automated XY cutters, and custom-formulated Lamination Films to build a turnkey, single-vendor finishing ecosystem.

Frequently Asked Questions (FAQ) About Inline Printing and Lamination

Will the laminator leave stop-marks on my print when the Epson printhead moves back and forth?

No, an optical loop sensor prevents stop-marks entirely. Unlike rigid mechanical linkages, MEFU’s inline system uses a non-contact optical sensor that monitors a floating slack loop of media between the Epson printer and the laminator. Instead of stopping and starting abruptly with the print carriage, the MEFU laminator smoothly modulates its micro-speed to keep the silicon rollers rotating continuously—guaranteeing zero stop lines.

How does MEFU customize an inline solution for my specific shop floor?

MEFU engineers configure hardware around your exact printer model, ink type, and floor space. Simply share your current Epson printer model, primary media types (e.g.vinyl, poster, PET film, canvas), daily square-meter output, and available room dimensions. Our team will specify the exact laminator model, bridge geometry, auxiliary drying units, and slitting attachments required to maximize your ROI.

Can I still use the MEFU MF1700 laminator as a standalone machine for rigid boards?

Yes, you can switch between inline roll-to-roll mode and offline rigid board mounting in seconds. The MEFU MF1700 Series features a generous nip gap of up to 28mm (1.1 inches). Whenever you are not running an inline job, you can roll away the bridge and use your MEFU machine as a standalone station for mounting prints onto Foamex, PVC, acrylic, Coroplast, or aluminum composite panels.

Does MEFU supply the lamination films and cutting equipment to match this line?

Yes, MEFU manufactures a complete post-press finishing ecosystem. With over 18 years of industry leadership across 110+ countries, MEFU delivers factory-matched Roll Laminators, Flatbed Applicators, Precision Cutting machines, Lamination Films, and Lamination Accessories designed to operate seamlessly together.

Ready to Build Your Automated Printing & Lamination Line?

With over 18 years of dedicated expertise in wide-format finishing and established partnerships in 110+ countries, MEFU makes it easy for print professionals worldwide to access tailored solutions that deliver exceptional results. Whether you need a ready-to-ship MF1700-F1 bundle or a bespoke finishing line engineered for your production demands, our team is ready to help.

Request a Custom Solution & Quote Today

Tell us your Epson printer model and daily production goals—our engineering team will design your tailored inline configuration within 24 hours!
