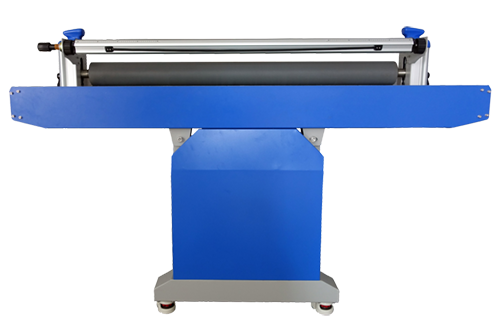

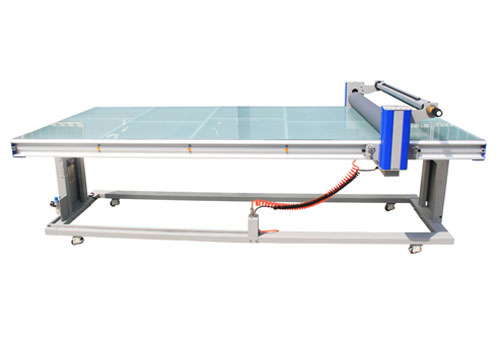

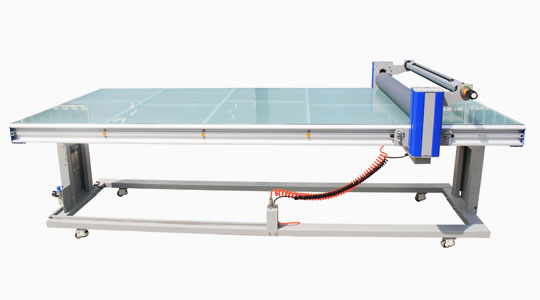

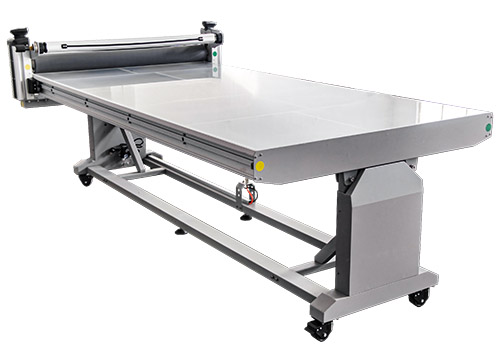

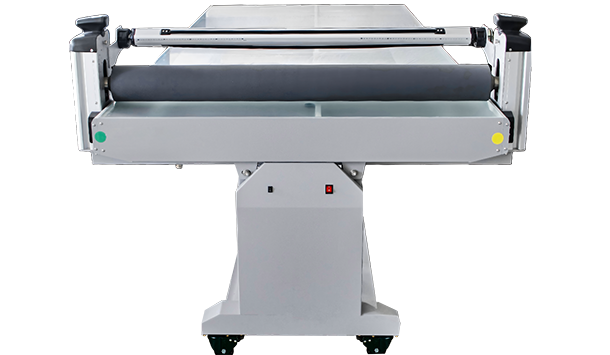

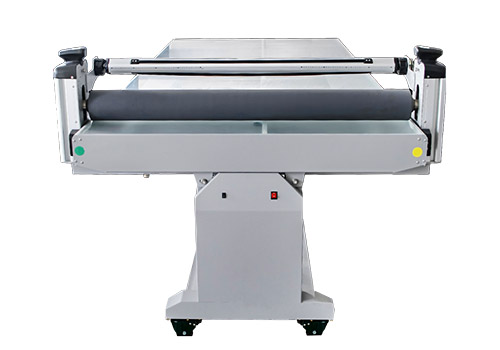

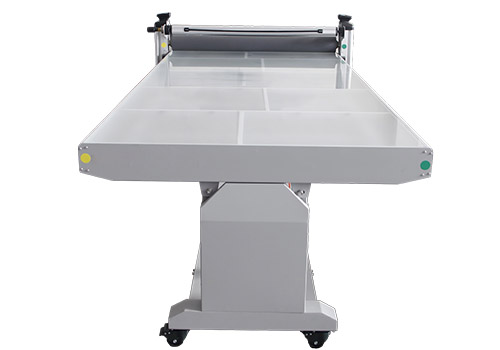

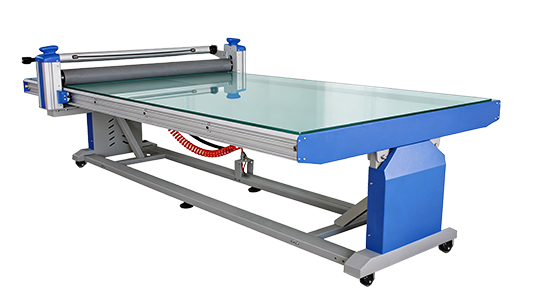

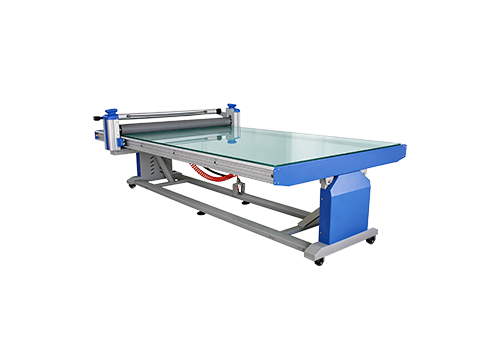

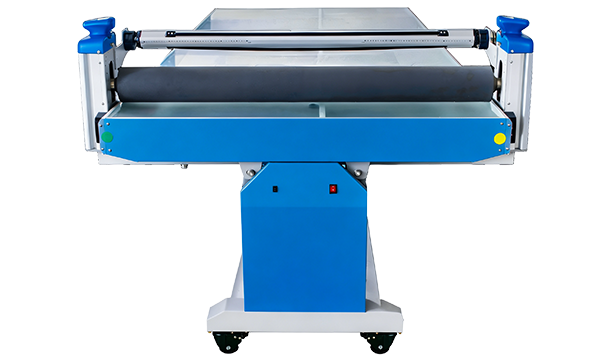

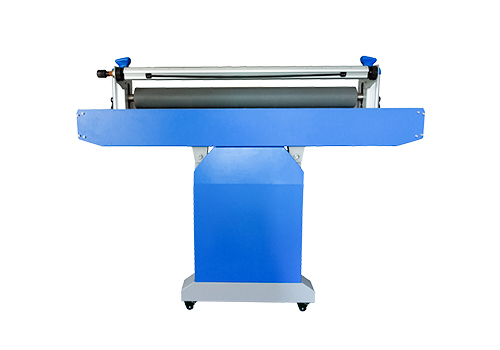

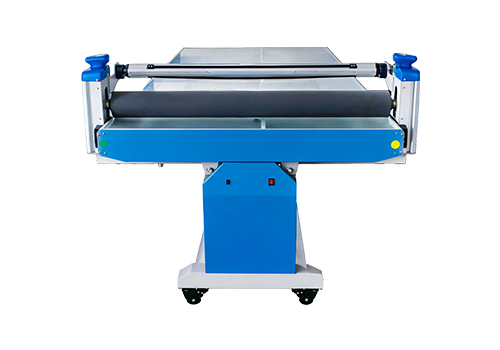

Standard MF-B4

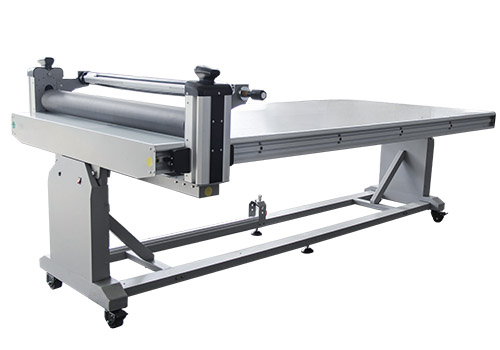

The flatbed applicator B4 series is the fully equipped multipurpose machine that gives you access to the superior production method provided.
It’s unique tilted table can reduce the delivery cost and more easier to entry the facility. Fast assembling and easy operating.
A media roll holder at the end of table provide easy material feeding possibility.

Details

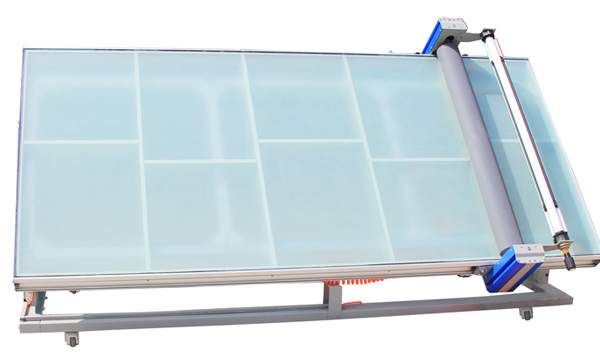

LED Illumination

Illuminated table is ideal to apply multicolored or translucent graphics.

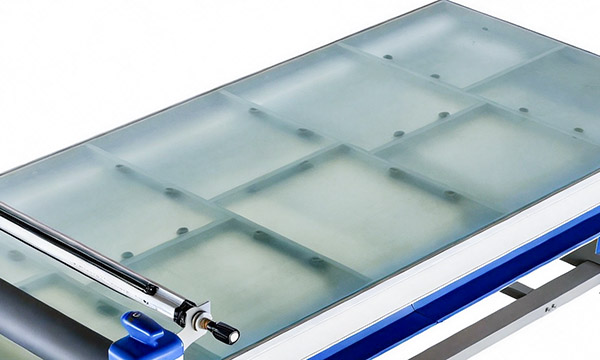

Safety Glass

Hybrid Laminating for Rigid & Flex Media.

130mm Silicon Roller

Premium heavy-duty rollers for enough pressure.

Pneumatic Lifting System

Roller up and down by Pneumatic.

Performance

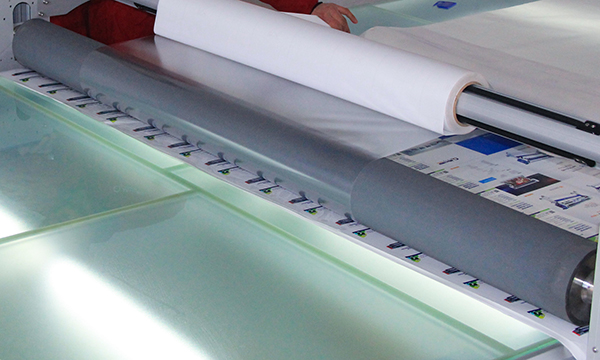

LED Illumination

Illuminated table is ideal to apply multicolored or translucent graphics.

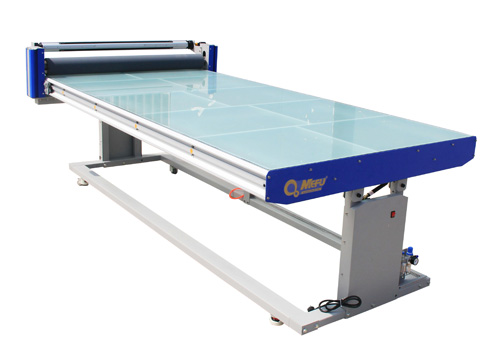

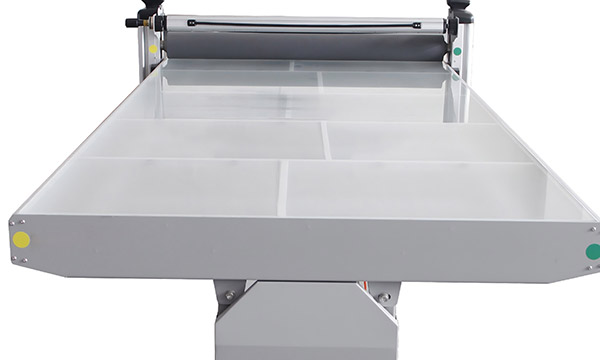

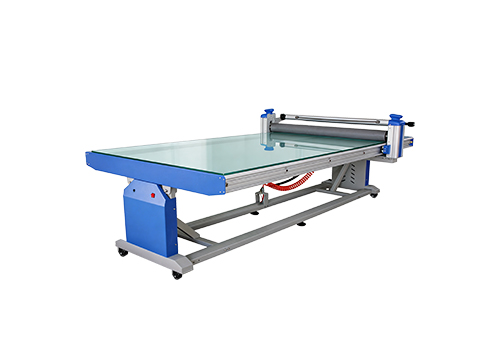

Tilted Table

Hybird Laminating for Rigid & Flex Media.

Tilted table for easier entrance, saving transport cost and space.

Easy assembling and operating.

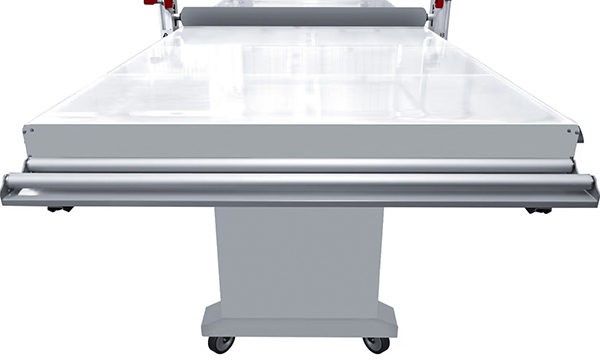

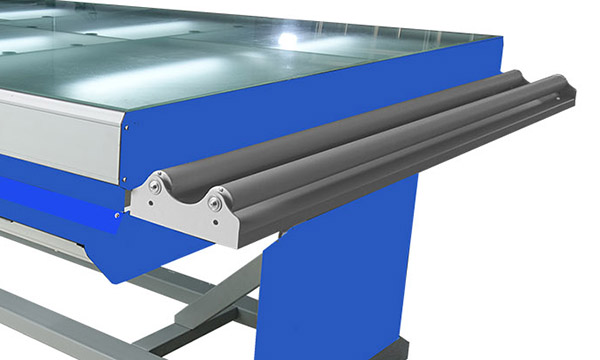

Media roll holder on bed end

A media roll holder on bed end for printed or cut film.

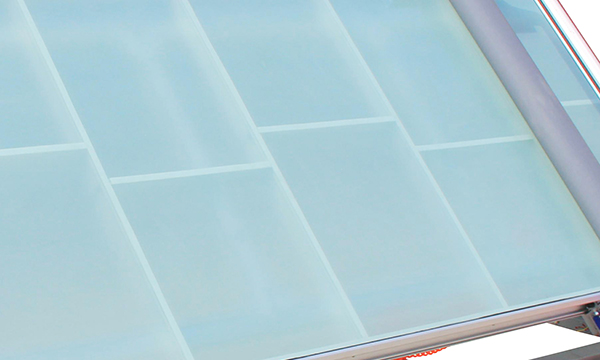

Safety Glass

Hybird Laminating for Rigid & Flex Media.

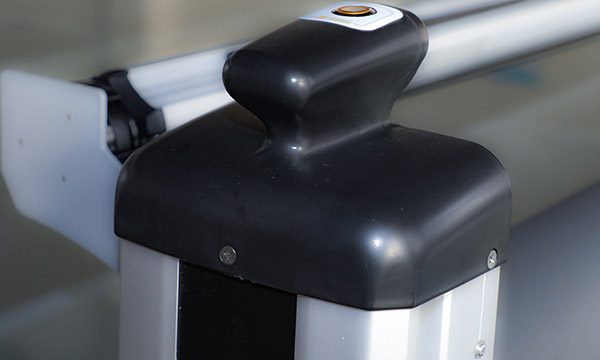

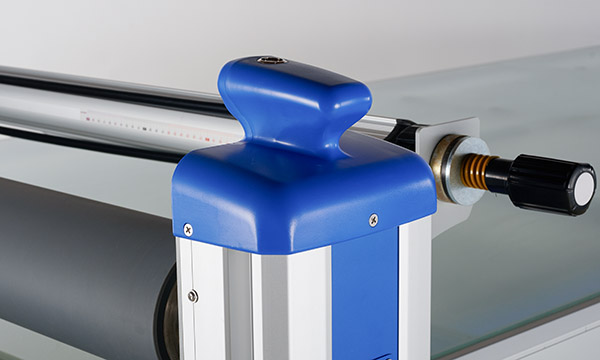

Pneumatic Lifting System

Roller up and down by Pneumatic

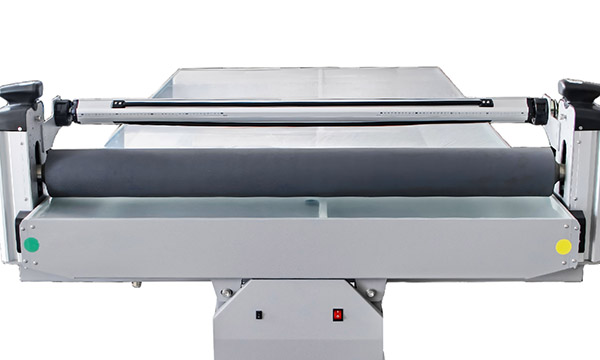

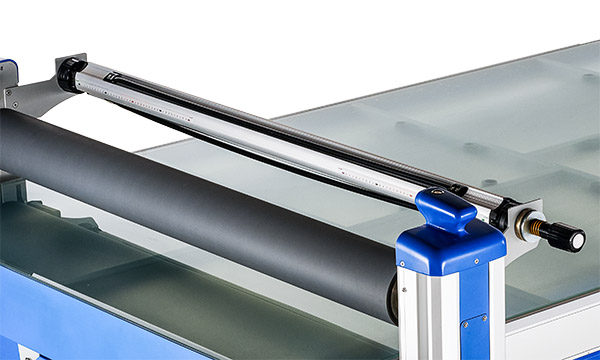

Premium Silicon Roller

130mm silicon roller for heavy-duty work.

Parameter

Flatbed	Standard	Premium
Lam Size	1300x2500mm 1600x3000mm	1300x2500mm 1600x3000mm 1600x3200mm
Max Lam Thickness	50mm/1.9''	50mm/1.9''
Max Temp	None	60℃
Side Trays	None	Yes
Up and down	Pneumatic
Roller	Silicon(130mm)
LED Illumination	Yes
Safety Glass	Yes
Media holder at end of table	Yes
