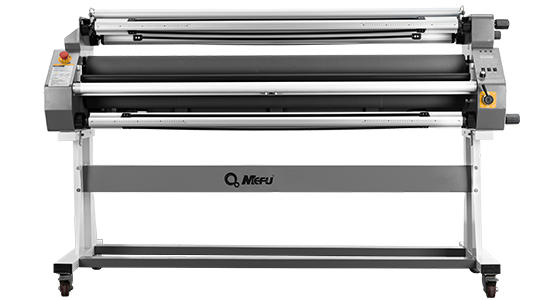

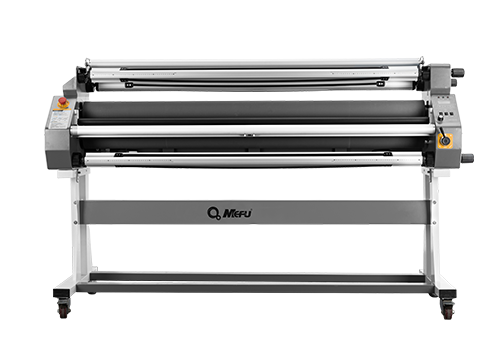

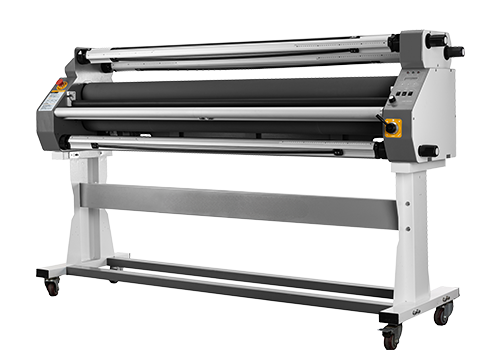

MF1700-M1 LITE

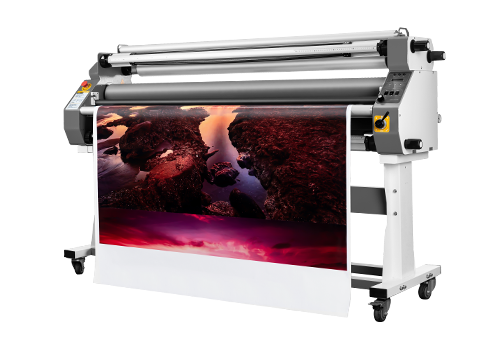

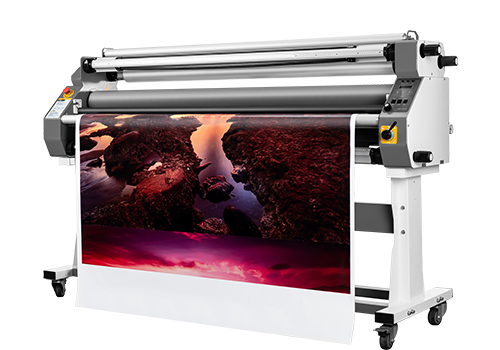

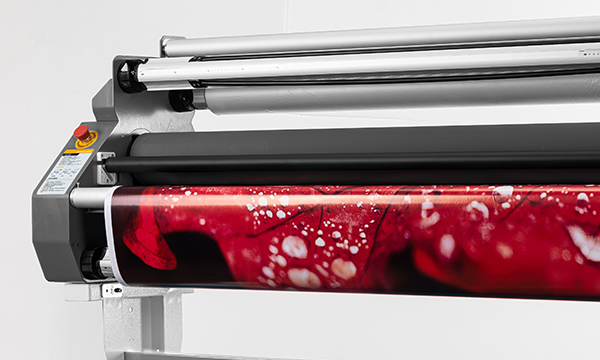

The entry level Roll-to-Roll laminator MF1700-M1 LITE with pneumatic lifting system, it is a ideal for laminating and mounting application of signages and graphics up to 1630mm/64” wide. It gives the extra feature of a heat assist top roller. Auto-locked exchangeable roll shafts, easy for rolls loading and unloading.

Details

120mm silicon rollers

120mm glue-free silicon rollers for roll-to-toll or rigid panels application.

Pneumatic lifting system

Pneumatic roller up and down, easier for lifting and adjust pressure.

Auto-locked exchangeable shaft

Upgraded shaft caps and holders can be easily locked and loaded medias.

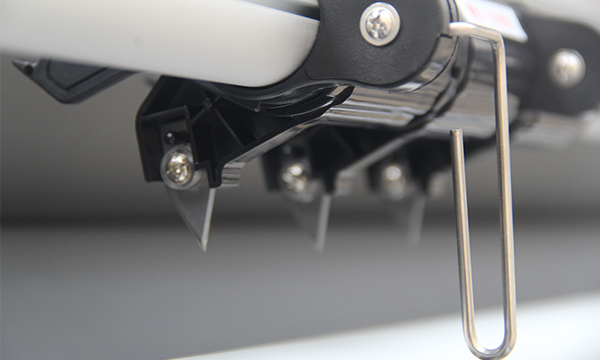

Precise vertical cutters

Safety vertical cutter with 2 single & 1 double central blade, easy to adjust the cutting edges.

Performance

Pneumatic lifting system

Pneumatic up and down
Easier for lifting and pressure adjusment

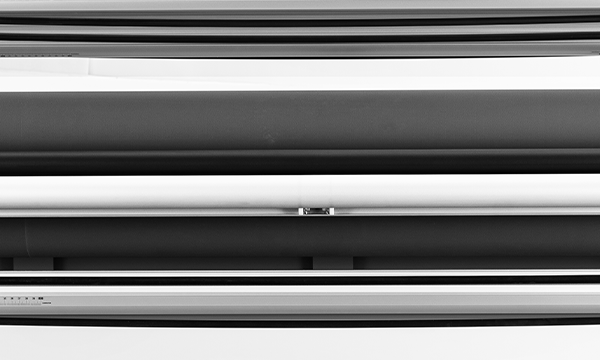

120mm silicon rollers

120mm glue-free silicon rollers for roll-to-roll or rigid panels application
Ensure even pressure of both sides and make good finishing

Safety vertical cutter

Fully position adjustable cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m

Auto-locked exchangeable roll shafts

Anti-static string is efficient way to ease static

Upgraded shaft caps and holders can be easily locked and loaded media

Parameter

Entry Series	MF1700-M1 PLUS	MF1700-M1 LITE	MF1700-M1	MF1700-B5 PRO	MF1700-B5	MF1600-B7
Smart System	ENTRY	None	ENTRY	None	None	None

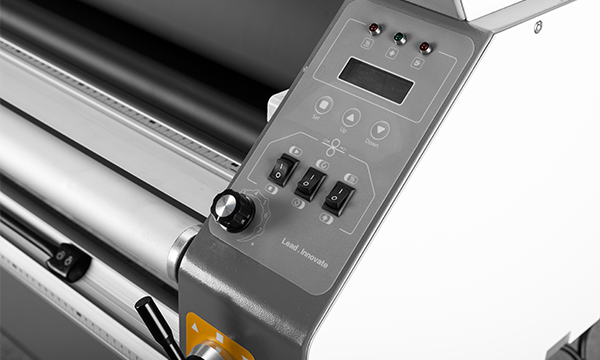

Front Panel	Speed and temperature	Temperature	Speed and temperature	None	None	None
Rear Panel	Speed	None	Speed	None	None	None
Lamination Statistics	None	None	None	None	None	None
Auto Stop	None	None	None	None	None	None
Alarm	None	None	None	None	None	None
Foot Pedal	Single foot pedal	Single foot pedal	Single foot pedal	Single foot pedal	None	None
Max Lam Width	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''	1520mm/59"
Max Lam Thickness	28mm/1.1''	28mm/1.1''	23mm/0.9''	28mm/1.1''	28mm/1.1''	28mm/1.1''
Max Speed	9m/min	9m/min	9m/min	6m/min	Manual	Manual
Heating	Top Heated	Top Heated	Top Heated	None	None	None
Max Temp	60°C	60°C	60°C	None	None	None
Up and Down	Pneumatic	Pneumatic	Hand Crank	Pneumatic	Pneumatic	Pneumatic
Roller	Silicon(120mm)	Silicon(120mm)	Silicon(120mm)	Silicon(130mm)	Silicon(130mm)	Silicon(120mm)
Trimmer Holder	Option	Option	Option	None	None	None
Power Input	1600W	1600W	1600W	120W	None	None
N.W.	150KGS	140KGS	150KGS	115KGS	100KGS	100KGS
