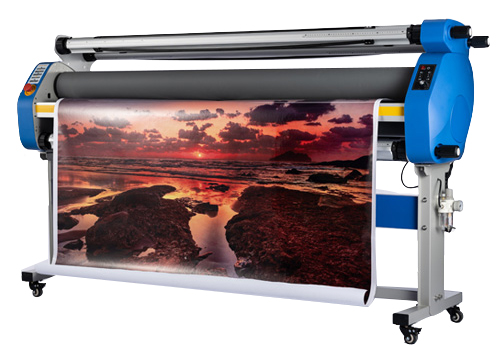

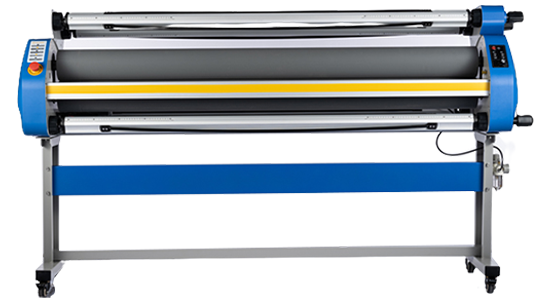

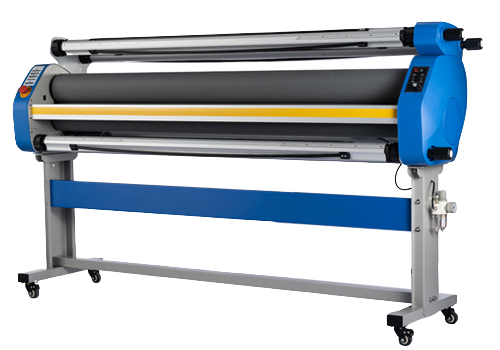

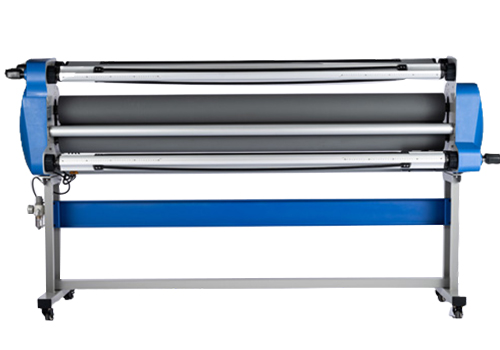

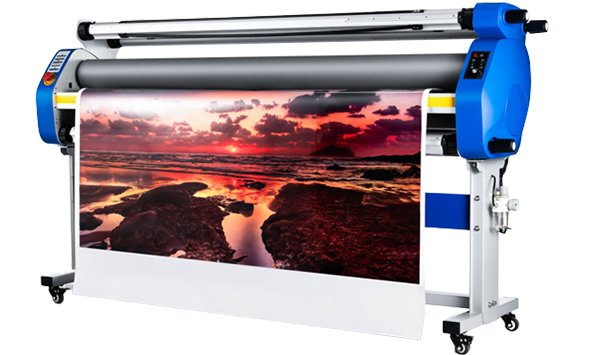

MF1700-B5 PRO

MF1700-B5 PRO

The simple MF1700-B5 PRO has pneumatic lifting system that can generate even pressure of rollers. With electrical running and rewinds ensure this laminating machine Roll-to-Roll capacity. Due to its 130mm silicon rollers, the operator will get a fancy finishes even without heating function.

Details

ABS new design

Strong and good looking.

Auto-locked exchangeable roll shafts

It provides possibility exchangeable with each other, with auto-locked.

Anti-static string

Anti-static string can eliminate most static during fast lamination.

130mm silicon rollers

130mm silicon rollers for heavy duty work.

Performance

Front Panel

Run or stop lamination

Easy to adjust machine speed

Air knob

Roller up and down

Simple lifting switch for better operation

Auto-locked exchangeable roll shafts

Upgraded shaft caps and holders can be easily locked and loaded media

Premium silicon rollers

130mm diameter silicon rollers for heavy duty lamination

Parameter

Entry Series	MF1700-M1 PLUS	MF1700-M1 LITE	MF1700-M1	MF1700-B5 PRO	MF1700-B5	MF1600-B7
Smart System	ENTRY	None	ENTRY	None	None	None
Front Panel	Speed and temperature	Temperature	Speed and temperature	None	None	None
Rear Panel	Speed	None	Speed	None	None	None
Lamination Statistics	None	None	None	None	None	None
Auto Stop	None	None	None	None	None	None
Alarm	None	None	None	None	None	None
Foot Pedal	Single foot pedal	Single foot pedal	Single foot pedal	Single foot pedal	None	None
Max Lam Width	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''	1520mm/59"
Max Lam Thickness	28mm/1.1''	28mm/1.1''	23mm/0.9''	28mm/1.1''	28mm/1.1''	28mm/1.1''
Max Speed	9m/min	9m/min	9m/min	6m/min	Manual	Manual
Heating	Top Heated	Top Heated	Top Heated	None	None	None
Max Temp	60°C	60°C	60°C	None	None	None
Up and Down	Pneumatic	Pneumatic	Hand Crank	Pneumatic	Pneumatic	Pneumatic
Roller	Silicon(120mm)	Silicon(120mm)	Silicon(120mm)	Silicon(130mm)	Silicon(130mm)	Silicon(120mm)
Trimmer Holder	Option	Option	Option	None	None	None
Power Input	1600W	1600W	1600W	120W	None	None
N.W.	150KGS	140KGS	150KGS	115KGS	100KGS	100KGS
