Roll Laminator

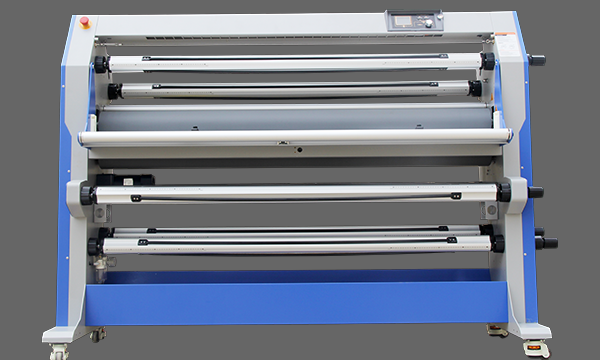

MF1700-F2

Plug & play industrial laminator.
Double Or Top heated functions.
Dual or Top heated
Laminating, Mounting, Encapsulating
Front and Rear control Panel
Temp, Speed, Lamination statistics
Brief
Details
Performance
Parameter
Process
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MF1700-F2
MEFU industrial laminator, MF1700-F2 is perfect for most applications of sign and graphic. The Dual-heated rollers with max temperature of 120C offers the possibility not only for laminating but also for mounting and encapsulating up to 1630mm.

Additionally, its fully adjustable tungsten blades can cut most materials with a lifetime that over 15000m.
Details
1
2
3
4
1.
Smart Entry System
Easy to check speed, temperature, and Lamination statistics.
2.
Pneumatic active cutting
Active cutter by pneumatic.
Fully adjustable trimmer holder.
3.
Plug & play
Strong and integrated frame. Plug & play.
4.
Double or Top heated
Option for double heated or top heated hot lamination.
Performance
Smart Entry System —— Front Panel
Speed, temp, and lamination statistics, easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days
Date and time display
Roller up and down
Smart Entry System —— Rear Panel
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed
Active cutter device, easy to use
Pneumatic active cutting roller
Active cutters by button on rear panel
Fully position adjustable cutters
High flexibility silicon cutting roller
Safety vertical cutter
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Upgraded with two paddles on 2 single trimmer holders
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m
Premium silicon rollers
Premium 130mm diameter silicon rollers provide heavy duty work and good finishes
Options for Double heated hot lamination offers the possibility not one for laminating but also for mounting and encapsulating
Max temperature could customize to 150℃
Plug & play
Plug & play, more friendly for assemble
Strong and integrated frame, easy to use
Parameter
Pro Series MF1700-F3 MF1700-F2 MF1700-C3
Smart System PRO ENTRY (Option for PRO) ENTRY (Option for PRO)
Front Panel Speed and temperature Speed and temperature Speed and temperature
Rear Panel Speed Speed Speed
Lamination Statistics Yes Yes Yes
Auto Stop Yes None None
Alarm Yes None None
Foot Pedal Multi-functions dual foot pedal  Single foot pedal  Single foot pedal
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64''
Max Lam Thickness 28mm/1.1'' 28mm/1.1'' 28mm/1.1''
Max Speed 50m/min 20m/min 20m/min
Heating Top Heated Dual or Top Heated Top Heated
Max Temp 60°C 120°C or 60°C 60°C
Up and Down Pneumatic Pneumatic Pneumatic
Roller Silicon(150mm) Silicon(130mm) Silicon(130mm)
Trimmer Holder 2 Single and
1 Double Central blades
2 Single and
1 Double Central blades
2 Single and
1 Double Central blades
Power Input 2000W 5200W/2800W/1600W 1600W
N.W. 500KGS 260KGS 180KGS

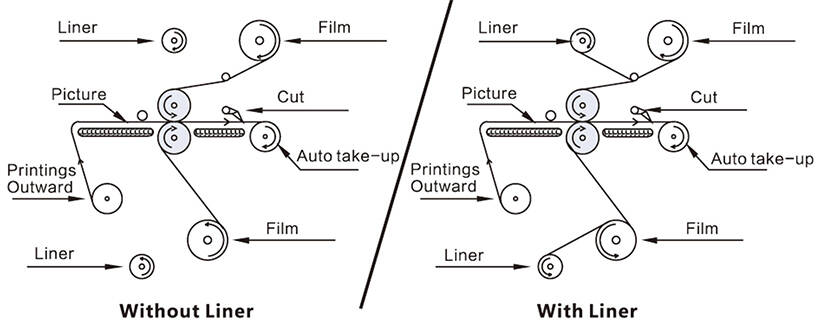

Process
