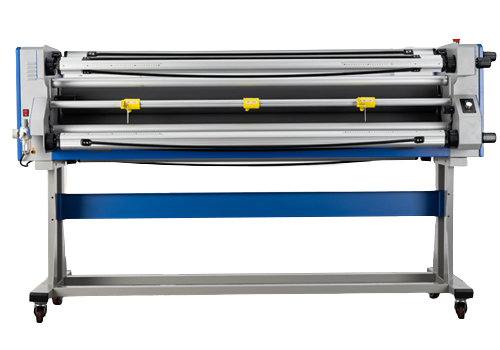

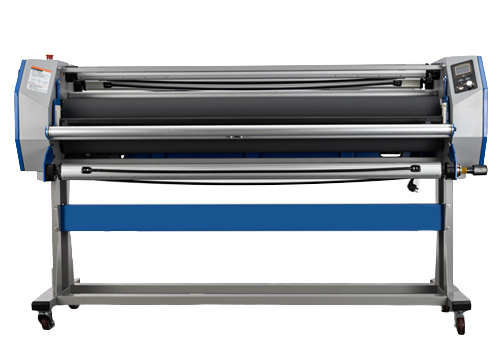

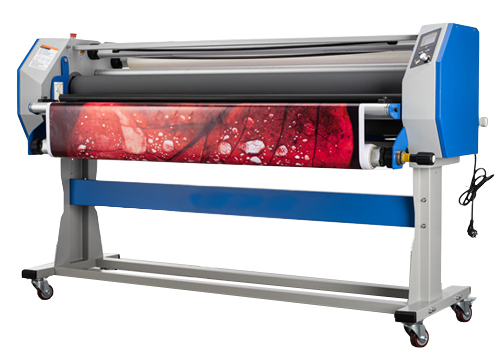

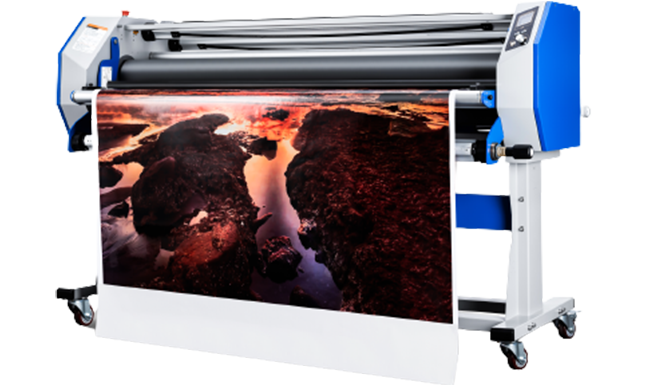

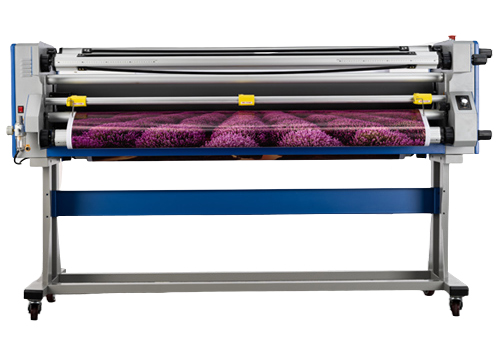

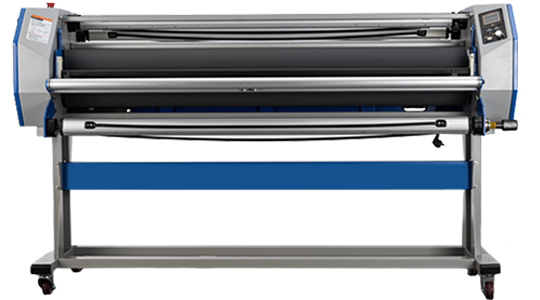

MF1700-A1 PRO

MEFU classic MF1700-A1 PRO is a good helper for expand your business, capable of heavy-duty roll-to-roll operation with multi-functions. Fully adjustable pressure and height by air ensures efficiency ever. This PREMIUM equipment can meet most applications, ideal for all inkjet and printing materials.

Precise vertical cutters can fully adjust the position, its tungsten blades have a lifetime over 15000m.

Details

Smart Entry System

Easy to check speed, temperature, and Lamination statistics.

Auto-locked exchangeable shaft

Upgraded shaft caps and holders can be easily locked and loaded medias. Anti-static string.

Precise vertical cutters

Fully adjust the position, its tungsten blades have a lifetime over 15000m.

Rear control panel

Easier for speed adjust and cutter active.

Performance

Smart Entry System —— Front Panel

Speed, temp, and lamination statistics

Easy to check lamination record in 30 days

Roller up and down for both sides even pressure

Smart Entry System —— Rear Panel

Run or stop lamination for easy operation

Rear speed adjustment and statistics to better precisely control speed

Rear working table

Fully position adjustable cutters for precise cutting

Manual active cutting roll to achieve vertical cutting function

Safety sensor eyes for safe operation

Safety vertical cutter

2 Single and 1 Double central blade

Upgraded with two paddles on 2 single holders

Durable tungsten steel blades

Premium silicon rollers

130mm diameter silicon rollers for heavy duty lamination

Top Heated warm lamination better melt glue on the film

Options for hot lamination to meet different needs

Anti-static string

Anti-static string is efficient way to ease static

Upgraded shaft caps and holders can be easily locked and loaded media

Parameter

Premium Series	MF1700-A1 PRO	MF1700-M1 PRO	MF1700-F1	MF1700-M5
Smart System	ENTRY	ENTRY	None	None
Front Panel	Speed and temperature	Speed and temperature	Temperature	Temperature
Rear Panel	Speed	Speed	None	None
Lamination Statistics	Yes	Yes	None	None
Auto Stop	None	None	None	None
Alarm	None	None	None	None
Foot Pedal	Single foot pedal	Single foot pedal	Single foot pedal	Single foot pedal
Max Lam Width	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''
Max Lam Thickness	28mm/1.1''	28mm/1.1''	23mm/0.9''	23mm/0.9''
Max Speed	15m/min	12m/min	12m/min	12m/min
Heating	Top Heated	Top Heated	Top Heated	Top Heated
Max Temp	60°C	60°C	120°C	60°C
Up and Down	Pneumatic	Pneumatic	Hand Crank	Hand Crank
Roller	Silicon(130mm)	Silicon(130mm)	Silicon(130mm)	Silicon(130mm)
Trimmer Holder	2 Single and 1 Double Central blades	2 Single and 1 Double Central blades	None	None
Power Input	1600W	1600W	2800W	1600W
N.W.	200KGS	150KGS	200KGS	200KGS
