Roll Laminator

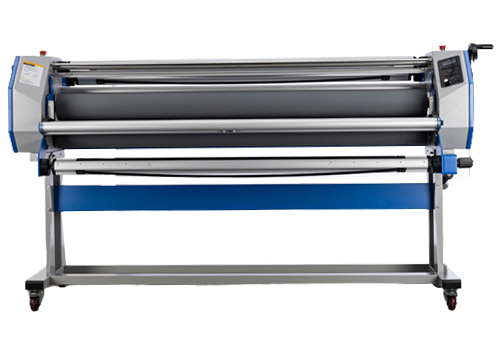

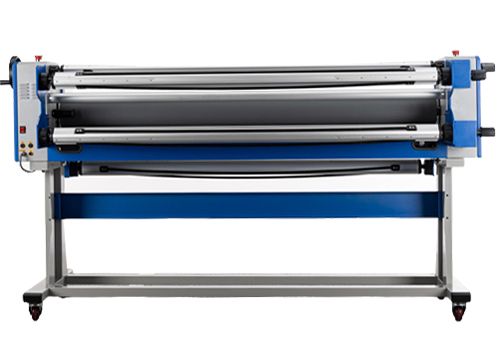

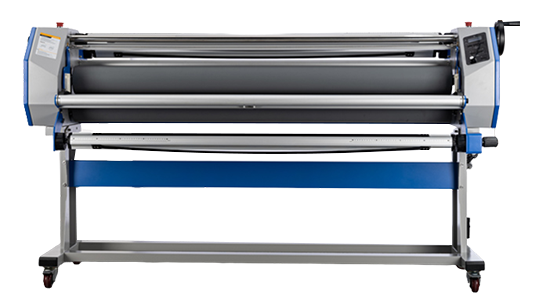

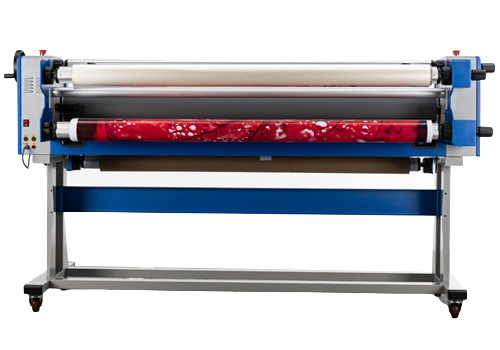

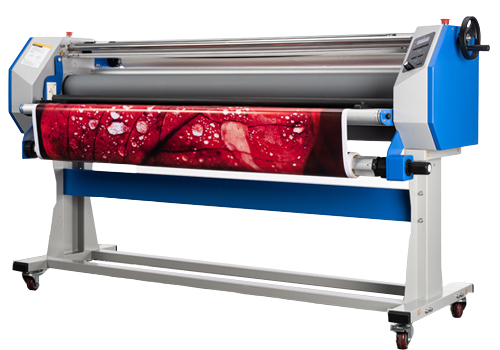

MF1700-M5

Classic hand crank adjusting height and pressure.
Heat-assist 130mm diameter silicon rollers.
Max heating 60C/140F
Hand-crank lifting roller
Front control panel
Auto-locked exchangeable shafts
Brief
Details
Performance
Parameter
Process
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
MF1700-M5
One of the best seller MF1700-M5 has a lamination width up to 1.63m/64’’, this size laminator covers the most common finishing requirements with high quality results. Premium silicon rollers ensure life of machine and and trouble free. Unique anti-tilt and anti-fold system ensures clear output. Its simple design makes it extremely easy to use and provide high quality laminating results.
Details
1
2
3
4
1.
Classic hand crank
Height and pressure adjusting
2.
Auto-locked exchangeable shaft
Upgraded shaft caps and holders can be easily locked and loaded medias.
3.
Premium 130mm silicon rollers
Heavy duty capacity
4.
Anti-static string
Efficient way to ease static during high speed lamination.
Performance
Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination
Top Heated warm lamination for better melt glue and good finishing
Options for hot laminating, mounting and encapsulating
Alloy classic hand crank
Roller up and down for both sides even pressure
Adjusting height for different substrates
Extra pressure can be generated by lift down the crank
Tilted bigger front working table
Easy for loading and unloading materials
Anti-tilted configuration for good finishing
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media
Parameter
Premium Series MF1700-A1 PRO MF1700-M1 PRO MF1700-F1 MF1700-M5
Smart System ENTRY ENTRY None None
Front Panel Speed and temperature Speed and temperature Temperature Temperature
Rear Panel Speed Speed None None
Lamination Statistics Yes Yes None None
Auto Stop None None None None
Alarm None None None None
Foot Pedal Single foot pedal  Single foot pedal  Single foot pedal  Single foot pedal
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64''
Max Lam Thickness 28mm/1.1'' 28mm/1.1'' 23mm/0.9'' 23mm/0.9''
Max Speed 15m/min 12m/min 12m/min 12m/min
Heating Top Heated Top Heated Top Heated Top Heated
Max Temp 60°C 60°C 120°C 60°C
Up and Down Pneumatic Pneumatic Hand Crank Hand Crank
Roller Silicon(130mm) Silicon(130mm) Silicon(130mm) Silicon(130mm)
Trimmer Holder 2 Single and
1 Double Central blades
2 Single and
1 Double Central blades
None None
Power Input 1600W 1600W 2800W 1600W
N.W. 200KGS 150KGS 200KGS 200KGS
