Roll Laminator

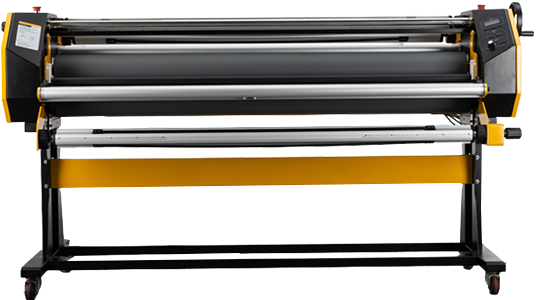

MF1700-F1

Optional 120C and 60C lamination capacity
Classic hand crank for adjusting the height and pressure
Max heating 120C/248F
Hand-crank lifting roller
Front control panel
Auto-locked exchangeable shafts
Brief
Details
Performance
Parameter
Process
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1
MF1700-F1

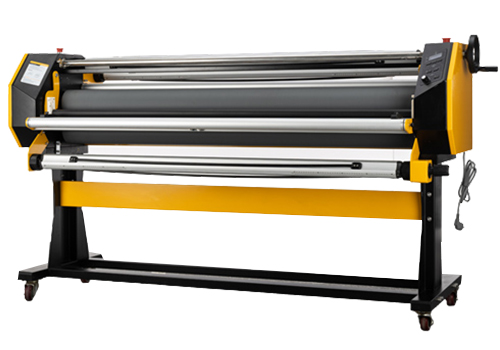

The semi-auto MF1700-F1 can satisfy most possibilities that under 1630mm/64’’. It is really an inexpensive option for the applications that needs heated up to 120℃.

Stronger frame, large diameter silicon rollers, steadily pressure system etc, provide more accurate operation than ever. Safety with Laser eye and emergency buttons provide 2 levels of protection for operators.
Details
1
2
3
4
1.
Classic hand crank
Height and pressure adjusting
2.
Auto-locked exchangeable shaft
Upgraded shaft caps and holders can be easily locked and loaded medias.
3.
120℃ lamination
Hot lamination capacity
4.
Anti-static string
Efficient way to ease static during high speed lamination.
Performance
Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination
Top Heated warm lamination for better melt glue and good finishing
Options for hot laminating, mounting and encapsulating
Alloy classic hand crank
Roller up and down for both sides even pressure
Adjusting height for different substrates
Extra pressure can be generated by lift down the crank
Tilted bigger front working table
Easy for loading and unloading materials
Anti-tilted configuration for good finishing
Emergency button for safety operation
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media
Parameter
Premium Series MF1700-A1 PRO MF1700-M1 PRO MF1700-F1 MF1700-M5
Smart System ENTRY ENTRY None None
Front Panel Speed and temperature Speed and temperature Temperature Temperature
Rear Panel Speed Speed None None
Lamination Statistics Yes Yes None None
Auto Stop None None None None
Alarm None None None None
Foot Pedal Single foot pedal  Single foot pedal  Single foot pedal  Single foot pedal
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64''
Max Lam Thickness 28mm/1.1'' 28mm/1.1'' 23mm/0.9'' 23mm/0.9''
Max Speed 15m/min 12m/min 12m/min 12m/min
Heating Top Heated Top Heated Top Heated Top Heated
Max Temp 60°C 60°C 120°C 60°C
Up and Down Pneumatic Pneumatic Hand Crank Hand Crank
Roller Silicon(130mm) Silicon(130mm) Silicon(130mm) Silicon(130mm)
Trimmer Holder 2 Single and
1 Double Central blades
2 Single and
1 Double Central blades
None None
Power Input 1600W 1600W 2800W 1600W
N.W. 200KGS 150KGS 200KGS 200KGS

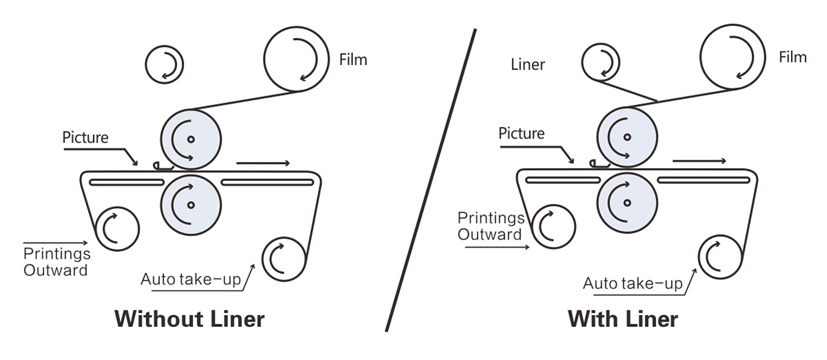

Process
