Roll Laminator

MF1700-M1 PLUS

Temperature, Speed display.
Outstanding finishing with a reasonable budget.
Front & Rear control Panel
Temperature, Speed display
Pneumatic lifting roller
Adjustable vertical cutter
Brief
Details
Performance
Parameter
Process
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1PLUS
MF1700-M1 PLUS

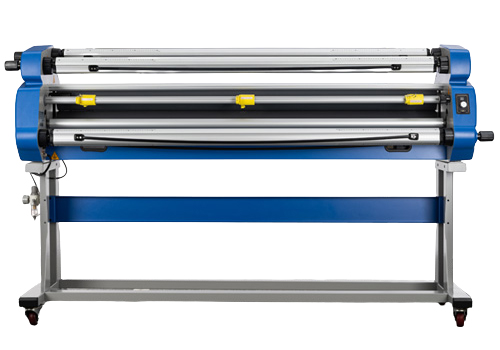

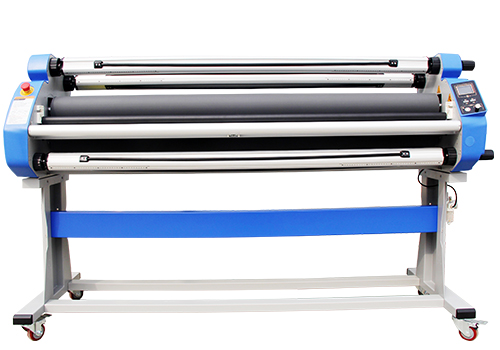

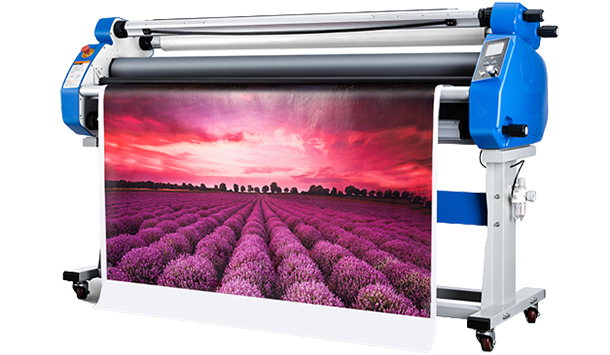

MF1700-M1 PLUS pneumatic lift heat-assist roll laminator with new ABS cover. This entry level automatic machine that can handle demanding jobs, its performance surpass the requirements of Printers and Finishers offers outstanding lamination service within a reasonable budget. Vertical cutting system is available in optional.

With the new control panels you can easily check Speed, Temperature.

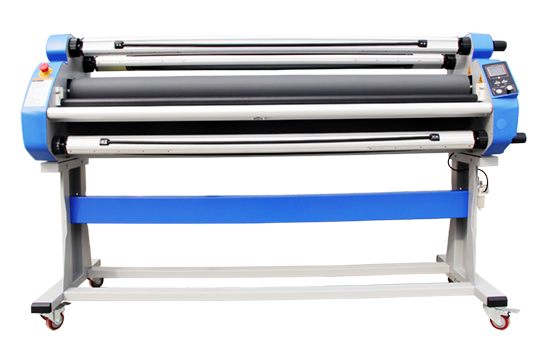

Details
1
2
3
4
1.
New LCD panel control system
Easy to check temperature and speed.
2.
Tension grip
Its tension knobs can be easily adjust to provide proper tension according to different medias
3.
Roll shaft
Auto-locked exchangeable roll shafts,Easy for rolls loading and unloading.
Anti-static string.
4.
120mm silicon rollers
Ensure even pressure of both sides and make good finishing.
Performance

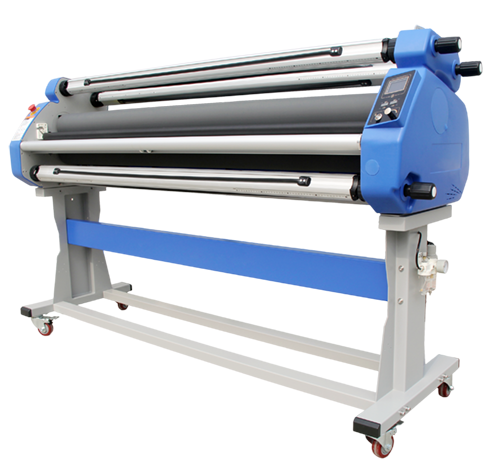

Smart Entry System —— Front Panel
Speed and temperature display, easy to check figures of set temp, real temp, and button speed
Date and time display
Roller up and down
Smart Entry System —— Rear Panel
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed

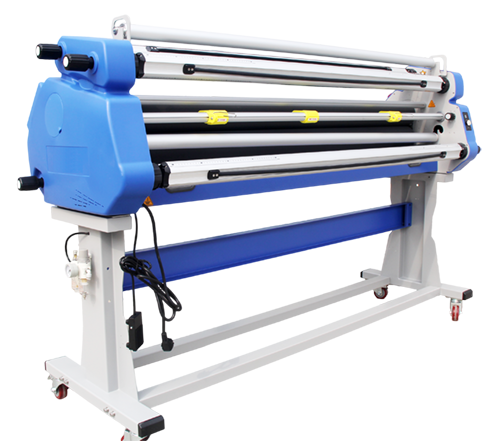

Optional safety vertical cutting
Fully position adjustable cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m

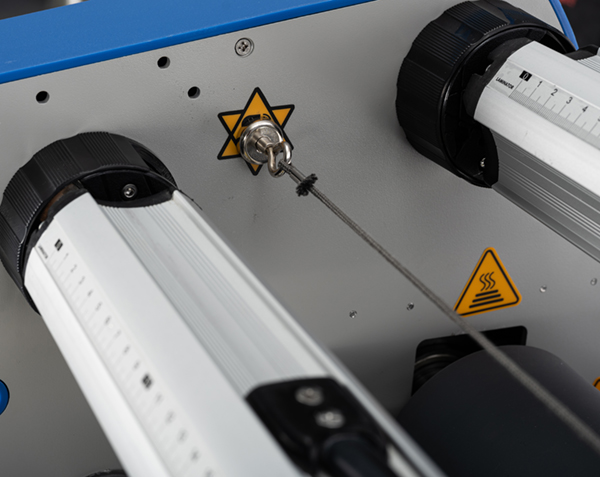

Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media
Parameter
Entry Series MF1700-M1 PLUS MF1700-M1 LITE MF1700-M1 MF1700-B5 PRO MF1700-B5 MF1600-B7
Smart System ENTRY None ENTRY None None None
Front Panel Speed and temperature Temperature Speed and temperature None None None
Rear Panel Speed None Speed None None None
Lamination Statistics None None None None None None
Auto Stop None None None None None None
Alarm None None None None None None
Foot Pedal Single foot pedal  Single foot pedal  Single foot pedal  Single foot pedal  None  None
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64'' 1520mm/59"
Max Lam Thickness 28mm/1.1'' 28mm/1.1'' 23mm/0.9'' 28mm/1.1'' 28mm/1.1'' 28mm/1.1''
Max Speed 9m/min 9m/min 9m/min 6m/min Manual Manual
Heating Top Heated Top Heated Top Heated None None None
Max Temp 60°C 60°C 60°C None None None
Up and Down Pneumatic Pneumatic Hand Crank Pneumatic Pneumatic Pneumatic
Roller Silicon(120mm) Silicon(120mm) Silicon(120mm) Silicon(130mm) Silicon(130mm) Silicon(120mm)
Trimmer Holder Option Option Option None None None
Power Input 1600W 1600W 1600W 120W None None
N.W. 150KGS 140KGS 150KGS 115KGS 100KGS 100KGS
