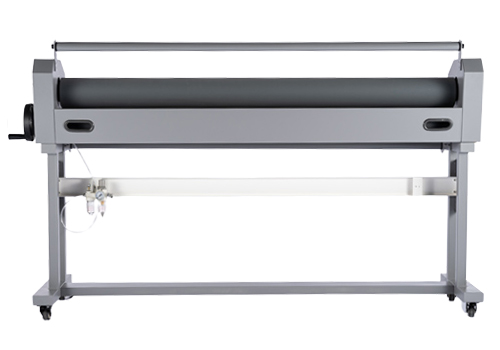

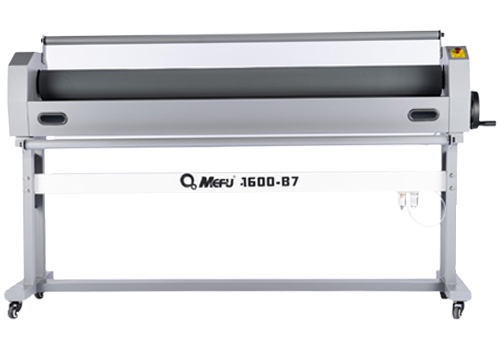

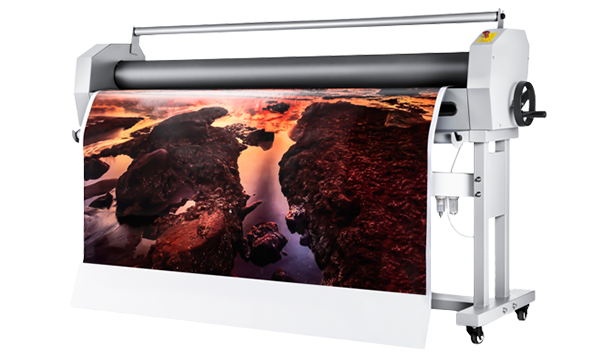

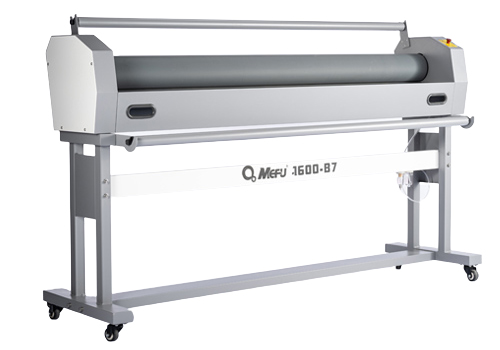

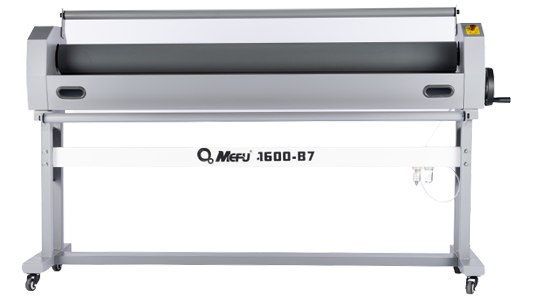

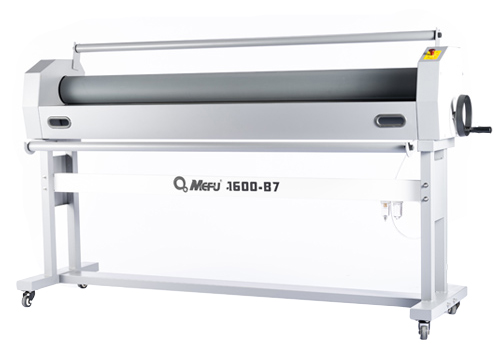

MF1600-B7

MF1600-B7 is a 1.53m/60in manual laminator with penumatic lift. Its simple design makes it extremely easy to use and provides quality laminating results.

Details

Pneumatic lifting

Pneumatic lifting silicone roller
Pressure equalization

Premium 120mm silicon rollers

Ensure even pressure of both sides and make good finishing

Two holders as standard

Easy for loading and unloading materials

Classic hand crank

High quality plastic casting handle
Durable and firm

Performance

120mm silicon rollers

The diameter is 120mm, and the weight of a single roller reaches 45kg

Good elasticity, anti-aging and long service life

Pneumatic lifting

Control raising and lowering

Pressure balance, easy to operate

Pneumatic lamination

Suitable for single sheet and sheet lamination

Cheap and durable

Two holders as standard

Made of aluminum alloy, the upper and lower materials are more convenient

Easy for loading and unloading materials

Oil water separator

Air pressure can be adjusted

The air pressure is generally 0.4-0.6mpa

Classic hand crank

manual lamination

aluminum alloy material is more smooth and labor-saving

Parameter

Entry Series	MF1700-M1 PLUS	MF1700-M1 LITE	MF1700-M1	MF1700-B5 PRO	MF1700-B5	MF1600-B7
Smart System	ENTRY	None	ENTRY	None	None	None
Front Panel	Speed and temperature	Temperature	Speed and temperature	None	None	None
Rear Panel	Speed	None	Speed	None	None	None
Lamination Statistics	None	None	None	None	None	None
Auto Stop	None	None	None	None	None	None
Alarm	None	None	None	None	None	None
Foot Pedal	Single foot pedal	Single foot pedal	Single foot pedal	Single foot pedal	None	None
Max Lam Width	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''	1520mm/59"
Max Lam Thickness	28mm/1.1''	28mm/1.1''	23mm/0.9''	28mm/1.1''	28mm/1.1''	28mm/1.1''
Max Speed	9m/min	9m/min	9m/min	6m/min	Manual	Manual
Heating	Top Heated	Top Heated	Top Heated	None	None	None
Max Temp	60°C	60°C	60°C	None	None	None
Up and Down	Pneumatic	Pneumatic	Hand Crank	Pneumatic	Pneumatic	Pneumatic
Roller	Silicon(120mm)	Silicon(120mm)	Silicon(120mm)	Silicon(130mm)	Silicon(130mm)	Silicon(120mm)
Trimmer Holder	Option	Option	Option	None	None	None
Power Input	1600W	1600W	1600W	120W	None	None
N.W.	150KGS	140KGS	150KGS	115KGS	100KGS	100KGS
