Roll Laminator

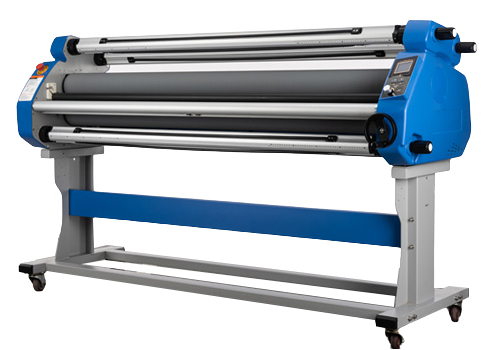

MF1700-M1

Classic manual lifting heat-assist laminator.
Unbeaten performances as an entry level machine.
Hand-crank lifting roller
Front & Rear control Panel
Temperature, Speed display
Optional vertical cutter
Brief
Details
Performance
Parameter
Process
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1
MF1700-M1

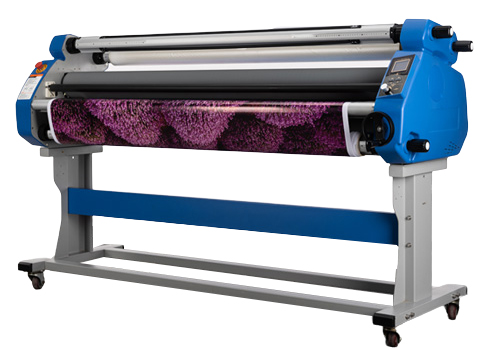

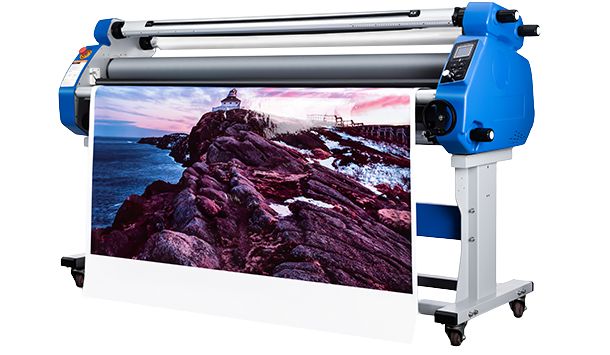

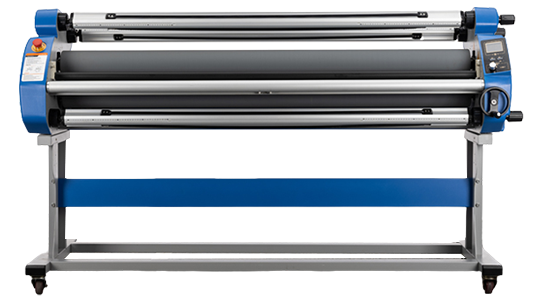

The new generation of MF1700-M1 offers unbeaten performances as an entry level laminator. 1.63m/64’’ wide can satisfy most application needs. This heat-assist machine is really a good helper for pressure sensitive adhesive lamination with air bubble free. 2 levels of protection ensures operator works in complete safety. Meanwhile, patent self-locking roll-shafts provides time saving while loading medias. The numerous features included makes application easy and safe.
Details
1
2
3
4
1.
New Entry Smart System
Easy to check temperature, speed and lamination statistics
2.

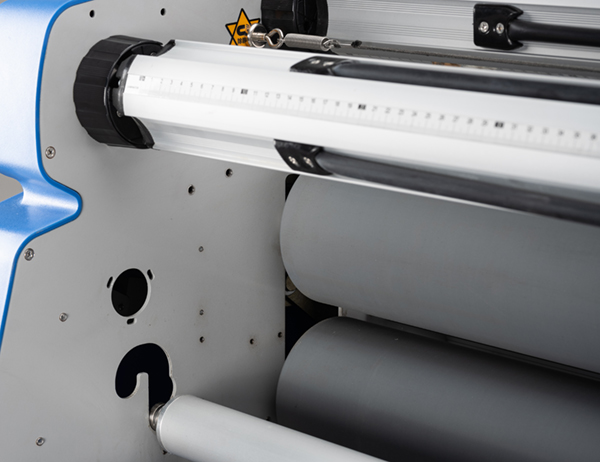

Roll shaft
Auto-locked exchangeable roll shafts,Easy for rolls loading and unloading.
3.
Hand crank
Its hand crank provides easy and smooth experience of nip-gap and pressure adjustment
4.
120mm silicon rollers
Ensure even pressure of both sides and make good finishing.
Performance

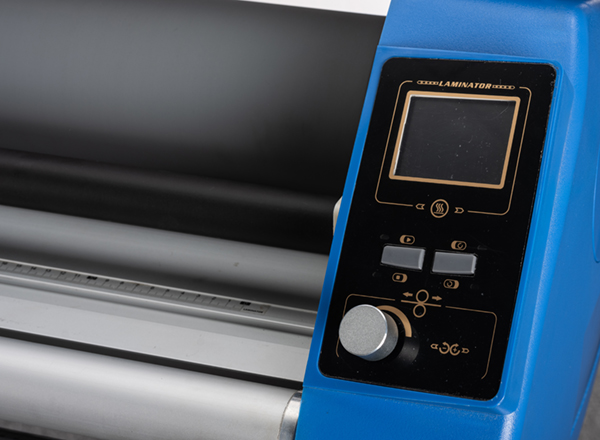

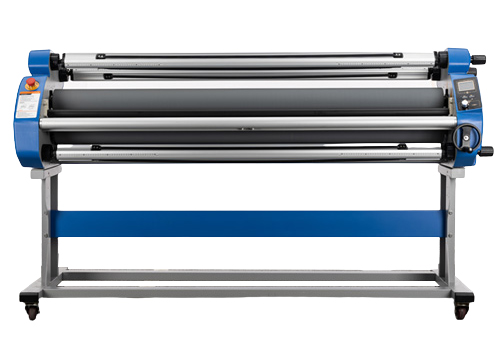

Smart Entry System —— Front Panel
Speed, temp, and lamination statistics, easy to check figures of set temp, real temp, and button speed
Date and time display
Roller up and down

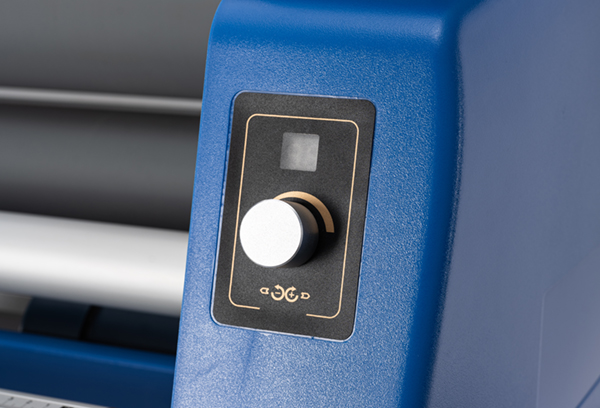

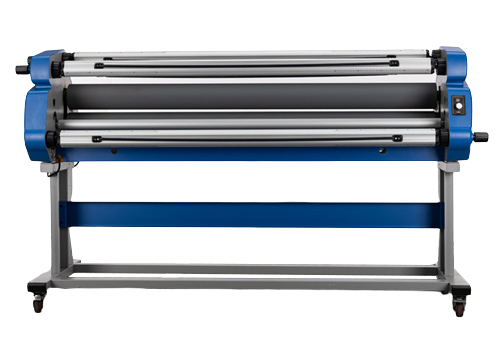

Smart Entry System —— Rear Panel
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed
Optional safety vertical cutting
Fully position adjustable cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media
Parameter
Entry Series MF1700-M1 PLUS MF1700-M1 MF1700-B5 PRO MF1700-B5 MF1600-B7
Smart System ENTRY ENTRY None None None
Front Panel Speed and temperature Speed and temperature None None None
Rear Panel Speed Speed None None None
Lamination Statistics None None None None None
Auto Stop None None None None None
Alarm None None None None None
Foot Pedal Single foot pedal  Single foot pedal  Single foot pedal  None  None
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64'' 1520mm/59"
Max Lam Thickness 28mm/1.1'' 23mm/0.9'' 28mm/1.1'' 28mm/1.1'' 28mm/1.1''
Max Speed 9m/min 9m/min 6m/min Manual Manual
Heating Top Heated Top Heated None None None
Max Temp 60°C 60°C None None None
Up and Down Pneumatic Hand Crank Pneumatic Pneumatic Pneumatic
Roller Silicon(120mm) Silicon(120mm) Silicon(130mm) Silicon(130mm) Silicon(120mm)
Trimmer Holder Option Option None None None
Power Input 1600W 1600W 120W None None
N.W. 150KGS 150KGS 115KGS 100KGS 100KGS
Process
