Cutting Machine

1400

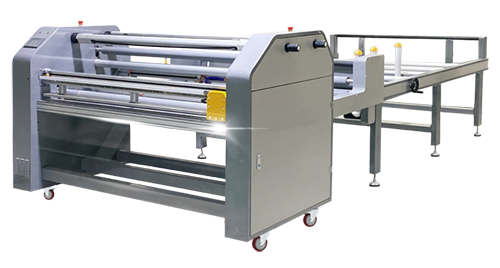

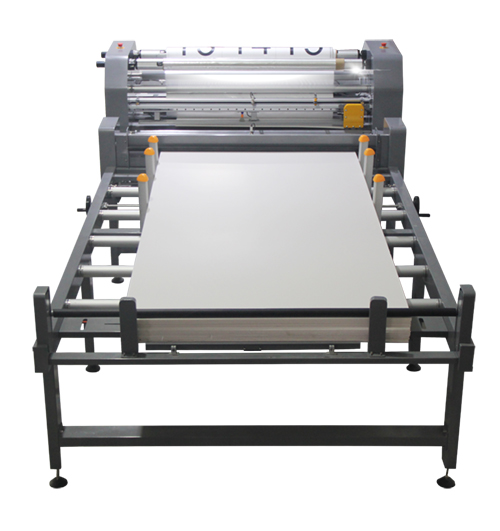

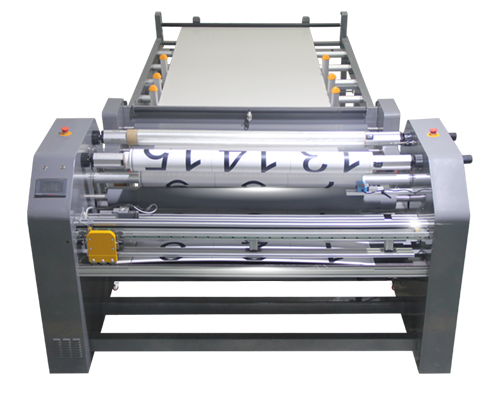

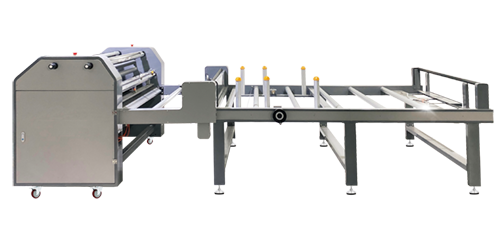

Fully automatic laminating, mounting, cutting machine
Laminating, mounting, cutting all in one
Special for sheets and boards
Vertical & Horizontal cutting capacity
Auto loading & feeding continuously
Brief
Parameter
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
Fully automatic laminating, mounting, cutting machine, specially designed for Sheets and Boards.

  1. Designed specially for sheets, boards that under 10mm
  2. Vertical tracking, horizontal alignment
  3. Manually adjust nip-gap for materials that over 5mm thick
  4. Max load 40 pieces sheets
  5. Auto loading and feeding continuously, highly improve efficiency
  6. Two working modes available
  7. Auto feeding for oversized prints
  8. Also it will cut waste if prints is shorter than sheets
Parameter
Type Automatic cutting machine
Max Width 1400mm or customized
Motor Servo motor
Vertical Cutting Thickness 10mm
Horizontal Cutting Thickness 5mm
Vertical Blades 1 pc round
Horizontal Blades 4 pcs round
Max Speed 25m/min
Roller Lifting Pneumatic
Volt 220V
Sheet Feeding Auto feeding/Stop
Emergency Stop Yes
N.W. 500kg
